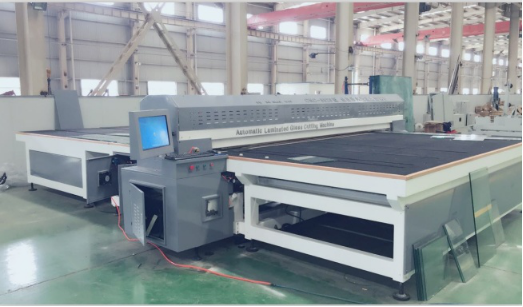

CNC Laminated Glass Cutting Table

Technical data:
Model : YGL-CNC-2620
Max. glass size: 2600*2000mm
Thickness: 2-24mm
Max. speed: 120m/min
Air pressure: 0.4-0.6MPa
Machine size: 5500*3000*1500mm (L*W*H)
Cutting pressure valve: SMC (Japan)

Main mechanical parts:
Rack and rail: KHK (Japan)
Guide rail: Hiwin (Taiwan)
Cutter wheel and cutter holder: Bolhe(Germany)
Main Electric parts:
CNC System: Galil (USA)
Servo motor: YASKAWA (Japan)
Pneumatic parts: Airtec (Tawiwan)
Low voltage electric parts: Schneider (France)
