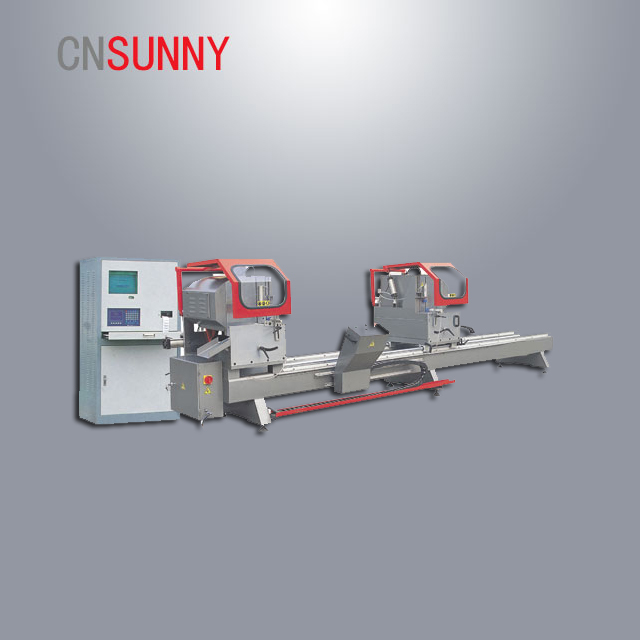

Function:Used in aluminum door & window and curtain wall profile cutting. Feature Integrated NC machine downloads software to produce processing data and procedure, which finish the processing automatically. The whole factory realizes computer integrated manufacturing system, that is, CAD, CAPP, and CAM. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. Midship auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically re
Quantity: | |
---|---|
Function:Used in aluminum door & window and curtain wall profile cutting. Feature Integrated NC machine downloads software to produce processing data and procedure, which finish the processing automatically. The whole factory realizes computer integrated manufacturing system, that is, CAD, CAPP, and CAM. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. Midship auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby), 45°and 90° profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient.
Technical Parameter:
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Power: 380V 50HZ
Motor power: 2.2KWx2
Cutting angle: 90 45 65.5 (22.5) (degree)
Saw blade standard: 500x4.4x30xZ120
Cuttting length: 400x4200mm
