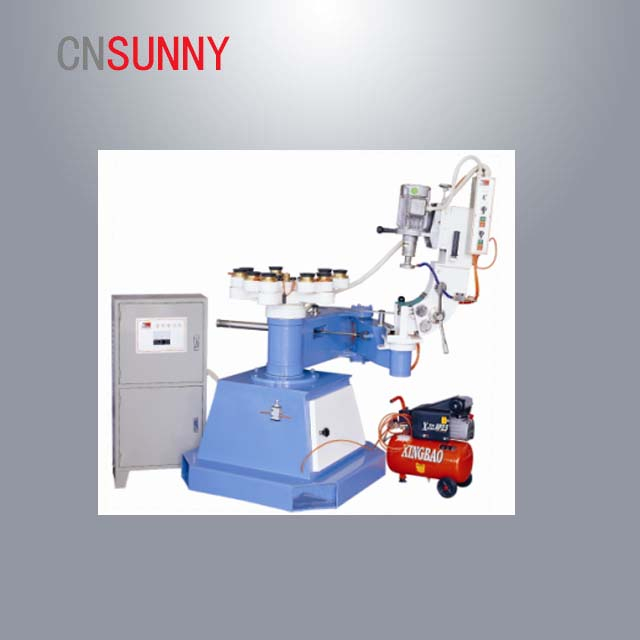

CR-3S Round Edging Machine

Technical Parameter:
Min. glass size: φ100mm
Max. glass size: φ2100mm
Bevel angle: 0-30°
Wheel speed: 0-2.5r/min.
Glass thickness: 3-40mm
Bevel grinding wheel: φ150(bevel edge wheel)
Max. bevel width: 40mm
Total power: 2.85kw
Voltage:220/380/415/440V,50/60HZ
Weight: 800kgs
Dimension: 1100X1100X1700mm
