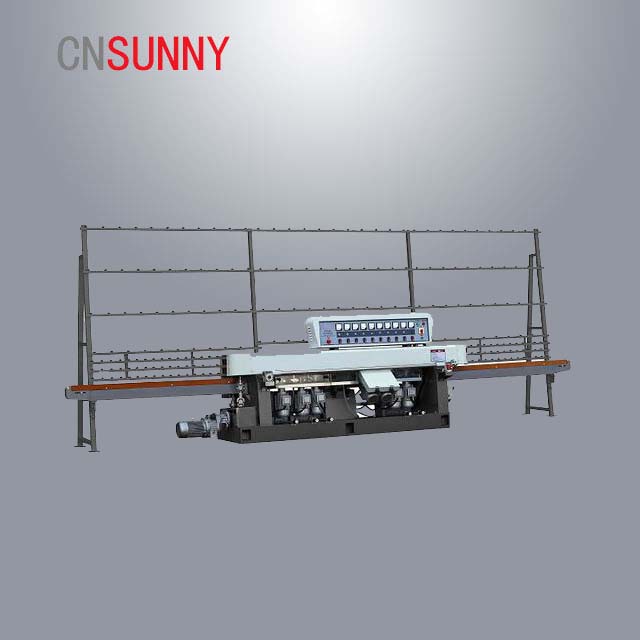

Vertical Straight-line Glass edging machine can process straight line and 45°edge. Rough grinding, fine grinding, polishing and chamfering can be completed in one process. It adopts stepless speed change which effects wider adjust range and stable speed alteration. Feeding and working speed can be adjusted at random. Front rail can be adjusted to fit varied thickness of processed glass. The machine has stable structure, precise smooth transmission system, advanced configuration control system and super size processing capacity, essential for processing glass for home furniture and architecture
Quantity: | |
---|---|
Item | Specification |
Max. glass size: | 3000X3000mm |
Min. glass size: | 80x80mm |
Glass thickness: | 3-25mm |
Maximum flat edging level: | 3mm |
Maximum arrising width: | 2.5mm |
Arrise angle: | 45° |
Working speed | 0.5-3.0m/min |
Voltage | 220/380/415/440V,50/60HZ |
Worktable height | 750mm |
