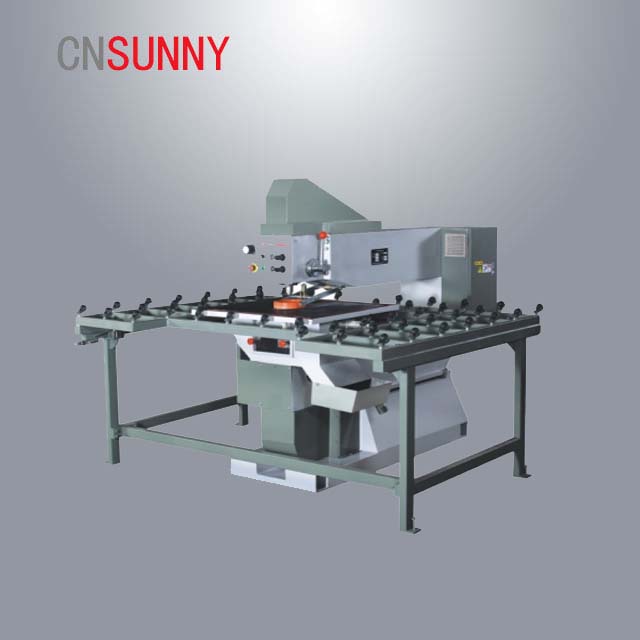

It is suitable for drilling/feeding glasses in different thickness. Pneumatic mechanism is used to clamp glasses. And the upper and lower aiguilles are drilling/ feeding by turn. The automatic operation is easy and convenient. It has a high efficiency which can work in batch. It is equipped with a pneumatic table which supports large size glasses, the function is excellent.
Main technical specifications:
1. Drilling diameter: Φ4-Φ220mm
2. Glass thickness: 3-20mm
3. Weight: 800kg
4. Occupy area: 2600 ×2600×1700mm
5. Power voltage:220/380/415/440V,50/60HZ
6. Total power: 3kw
